Sibo has focused on potentiometers and sensors for 30 years.

EI35A-C9
EI35A-C9

EI35A-C9

Incremental Encoders

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Magnetic encoders, speed sensor

  • Any PPR up to 4096 can be set

  • With one couple of precision ball bearings

  • Screw&Servo mount

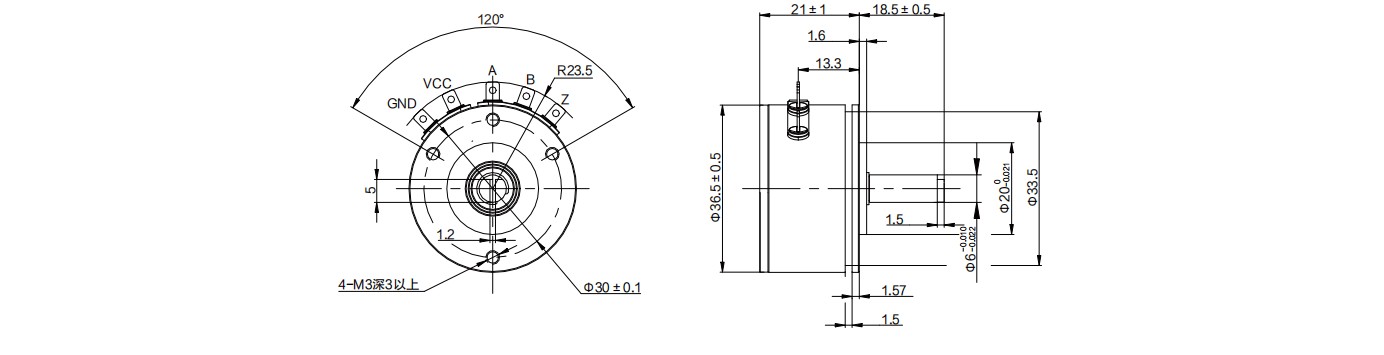

Dimension


Parameter

General Mechanical Specifications

Protection degree

IP40

Operating torque

<1mN·m

Max.speed

6000rpm

Life expectancy

100,000,000

Mass

Approx.60g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

工作溫度

-40℃～+125℃

儲(chǔ)存溫度

-40℃～+125℃

General Electrical Specifications

Standard model

EI35A-C9-W4096-P

Applied voltage

5V-30V

Output high level

>3V

Output low level

<0.25V

Output form

Push-pull output

Number of output pulse

4096 ppr

Output propagation delay

<2μs

Current consumption (no-load)

<20mA

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、flatted etc.)
